Internal insulation system with Fiber Wood

Internal thermal insulation system with our Fiber Wood

Internal insulation composite systems (ETICS) in Fiber Wood Fibertherm. Betonwood provides building solutions for insulated wall systems with stratigraphies which include our thermal and acoustic insulation with Fibertherm fiber wood and our cement bonded particle boards.

 Fiber Wood Protect for internal thermal insulation system

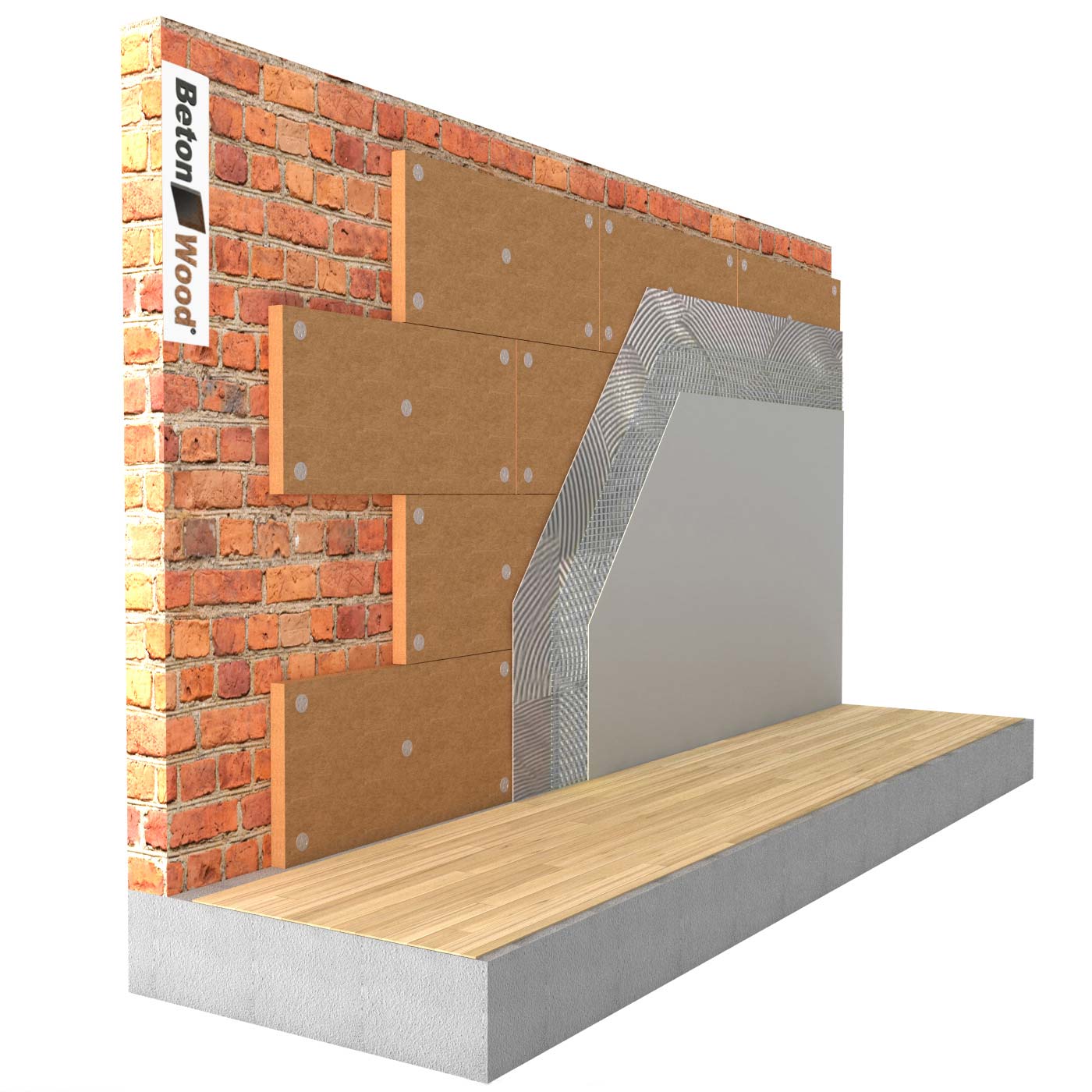

1. Thermal insulation system with fiber wood Protect

Internal thermal insulation composite system (ETICS) in plasterable fiber wood FiberTherm Protect realized in wet produced panels with sharp edges of tongue&groove edges available in 2 different densities 230kg/m³ and 265kg/m³, fixing plugs suitable for fiber wood panels, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification
  Download the Installation guide 230
  Download the Installation guide 265

See photo gallery 12 See photo gallery 14
 Fiber Wood Protect dry for internal thermal insulation system
2. Thermal insulation system with fiber wood Protect dry

Internal thermal insulation composite system (ETICS) in plasterable fiber wood FiberTherm Protect dry realized in dry produced panels with sharp edges of tongue&groove edges available in 3 different densities 110kg/m³, 140kg/m³ and 180kg/m³, fixing plugs suitable for fiber wood panels, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification
  Download the Installation guide 110
  Download the Installation guide 140
  Download the Installation guide 180

See photo gallery 10
 Fiber Wood Internal for internal thermal insulation system
2a. Thermal insulation system with fiber wood Internal

Internal thermal insulation composite system (ETICS) in plasterable fiber wood FiberTherm Internal is realized in wet produced panels with sharp edges and tongue&groove edges and it is available in 160kg/m³ density. Fixing plugs, skimming/glueing products, glass fiber net BetonNet and accessories are suitable for these fiber wood panels.


  Download the Data sheet
  Download the Specification
  Download the Installation guide
See photo gallery 14
Internal insulation system with fiber wood FiberTherm and cement bonded particle board on masonry
7. ETICS with fiber wood Therm and cement bonded particle board on masonry

Internal wall lining system in cement bonded particle boards BetonWood and fiber wood FiberTherm on masonry. The system is characterized by fiber wood type FiberTherm with sharp edges and density 160kg/m³ for thermal and acoustic insulation, and internal plasterable cement bonded particle boards BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification

See photo gallery 26
Internal insulation system with fiber wood FiberTherm and cement bonded particle board on X-Lam
9. ETICS with fiber wood Therm and cement bonded particle board on X-lam

Internal wall lining system in cement bonded particle boards BetonWood and fiber wood FiberTherm on X-lam. The system is characterized by fiber wood type FiberTherm with sharp edges and density 160kg/m³ for thermal and acoustic insulation, and internal plasterable cement bonded particle boards BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification

See photo gallery 26
Internal partitions with fiber wood FiberTherm and cement bonded particle board
12. Partition in cement bonded particle boards and fiber wood Therm

Internal partition walls covered with plasterable cement bonded particle boards BetonWood with insulating fiber wood panels type FiberTherm on wooden structure. The system is characterized by fiber wood type FiberTherm with sharp edges and density 160kg/m³ for thermal insulation and external covering panels in BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download Data sheet
  Download Specification

See photo gallery 26

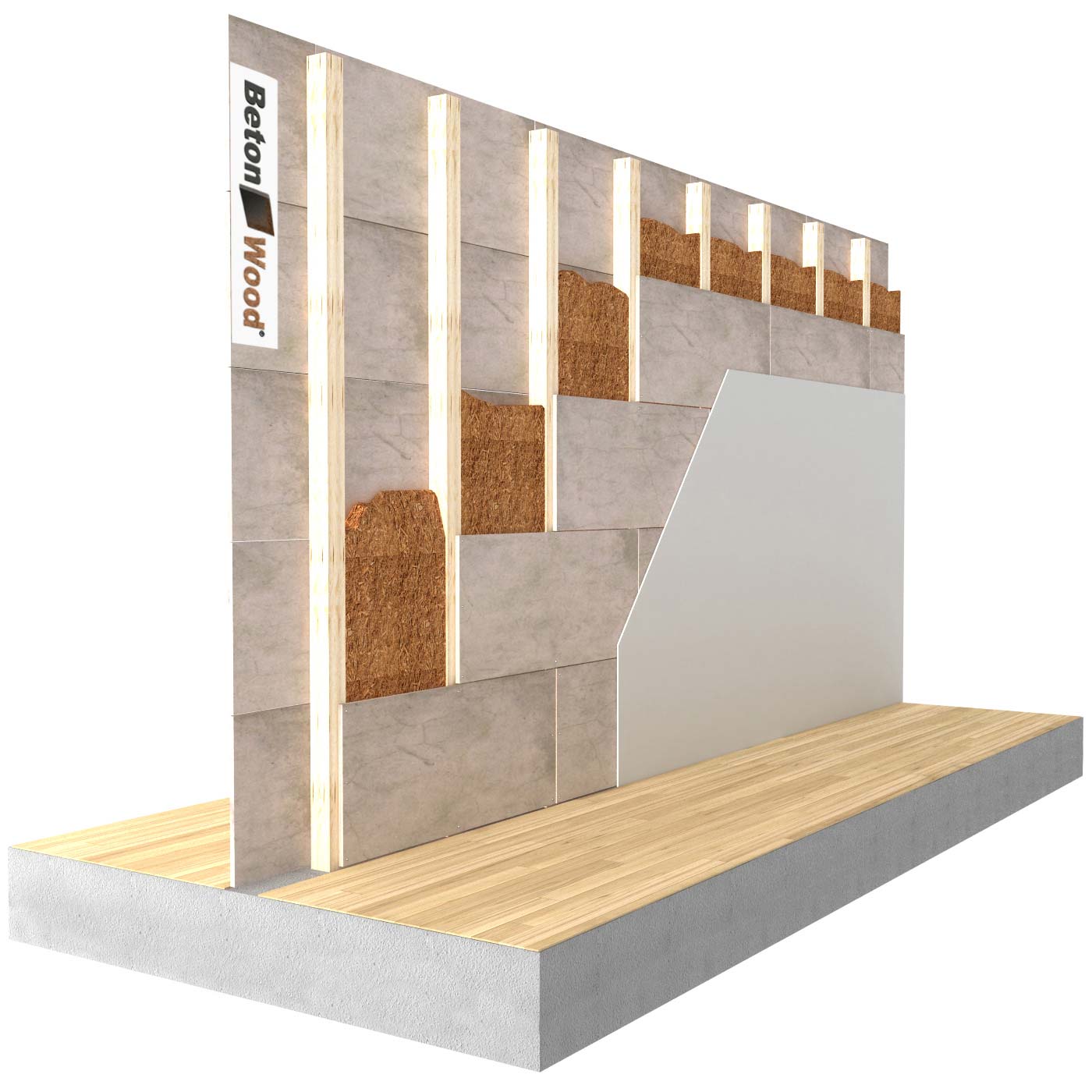

Internal partitions with loose fiber wood Zell and cement bonded particle board
13. Partition in cement bonded particle boards and loose fiber wood Zell

Internal partition walls covered with plasterable cement bonded particle boards BetonWood with insulating loose fiber wood type FiberTherm Zell on wooden structure. The system is characterized by loose fiber wood type FiberTherm Zell with variable density for thermal insulation and external covering panels in BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download Data sheet
  Download Specification

See photo gallery 26
Internal partitions with cellulose flakes Floc and cement bonded particle board
14. Partition in cement bonded particle boards and cellulose flakes

Internal partition walls covered with plasterable cement bonded particle boards BetonWood with insulating cellulose flakes type FiberTherm Floc on wooden structure. The system is characterized by loose cellulose flakes type FiberTherm Floc with variable density for thermal insulation and external covering panels in BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download Data sheet
  Download Specification

See photo gallery 26

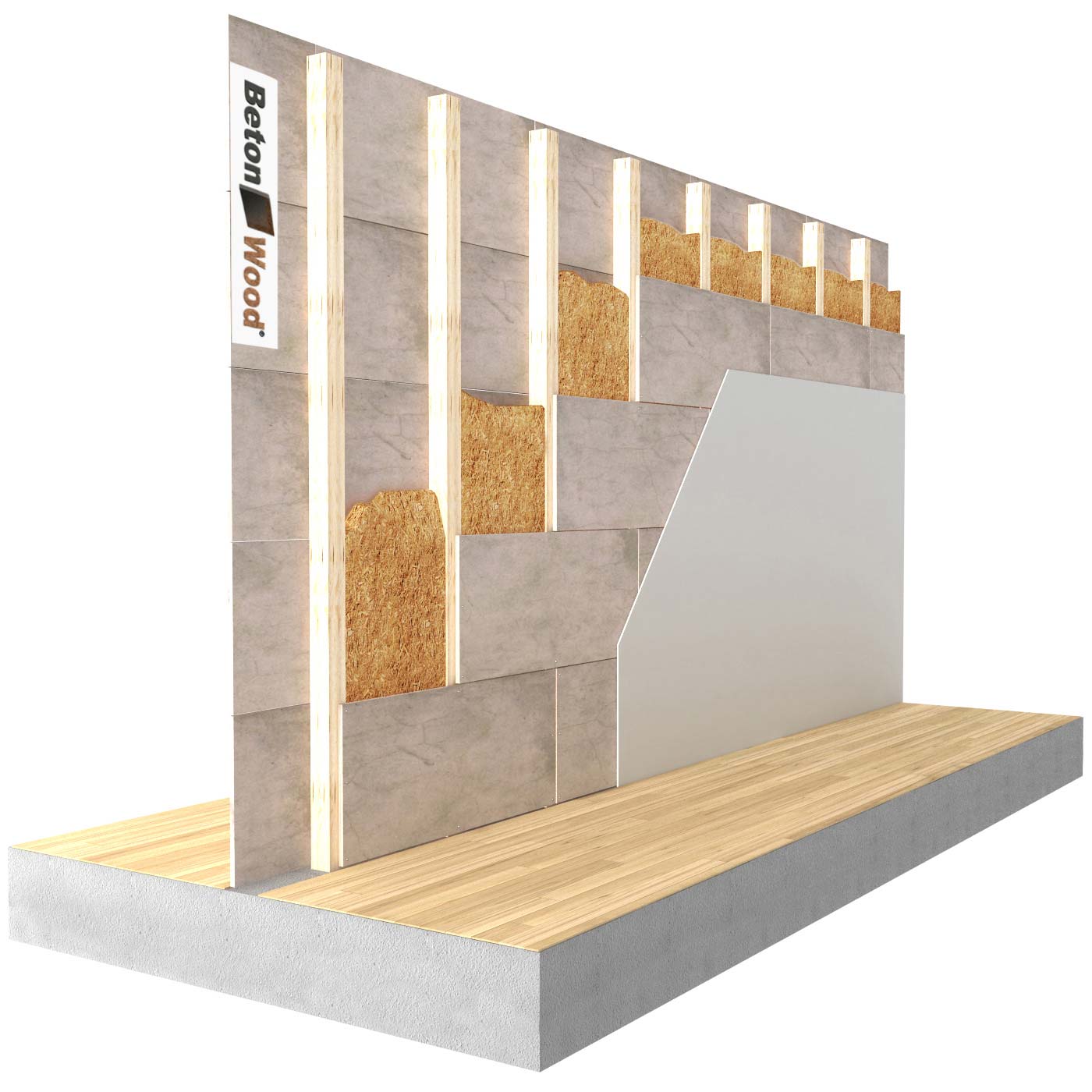

Internal partitions with hemp fibers and cement bonded particle board
15. Partition in cement bonded particle boards and loose hemp fiber Canawool

Internal partition walls covered with plasterable cement bonded particle boards BetonWood with insulating loose hemp fibers type FiberTherm Canawool on wooden structure. The system is characterized by loose hemp fibers type FiberTherm Canawool with variable density for thermal insulation and external covering panels in BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download Data sheet
  Download Specification

See photo gallery 26


Fiber Wood for Internal thermal insulation systems

Fiber Wood Protect dry
Fiber Wood Protect dry

Fiber Wood panels available with 3 different densities 110 Kg/m³, 140 Kg/m³, 180 Kg/m³. Plasterable Fiber Wood panels for realize thermal insulating composite systems internal and external.

from 12,00€/m²

Go to page
Fiber Wood Protect
Fiber Wood Protect

Fiber Wood panels available with 2 different densities 230 Kg/m³, 265 Kg/m³. Plasterable Fiber Wood panels for realize thermal insulating composite systems internal and external.

from 8,40€/m²

Go to page
Fiber Wood Internal
Fiber Wood Internal

Fiber Wood panels Internal density 160 Kg/m³. Plasterable Fiber Wood panels for realize internal thermal insulating composite systems with thin thicknesses to occupy the less possible space.

from 10,09 €/m²

Go to page
Fiber Wood Therm dry
Fiber Wood Therm Dry

Fiber Wood panels FiberTherm Dry with density 110 Kg/m³. Thermal and acoustic insulation panels ideal for attics and walls.

from 6,17€/m²

Go to page
Fiber Wood Therm
Fiber Wood Therm

Fiber Wood panels FiberTherm with density 160 Kg/m³. Rigid thermal and acoustic insulation panels for dry screeds, walls, roofs, attics.

from 5,60€/m²

Go to page
Fiber Wood Therm SD
Fiber Wood Therm SD

Fiber Wood panels FiberTherm SD with density 160 Kg/m³. Rigid thermal and acoustic insulation panels for dry screeds, walls, roofs, attics.

from 4,53€/m²

Go to page
Cellulose flakes Floc
Cellulose flakes Floc

Cellulose flakes for filling of walls, roofs, attics and floors cavietes. Cellulose flakes which fills all the empty spaces in the structural elements.

from 0,90 €/kg

Go to page
Loose fiber wood Zell
Loose fiber wood Zell

Loose fiber wood for filling of walls, roofs, attics and floors cavietes. Pure ecological fiber woods which fills all the empty spaces in the structural elements.

from 1,07 €/kg

Go to page
Loose hemp fiber Canawool
Loose hemp fiber Canawool

Loose hemp fibers for filling of walls, roofs, attics and floors cavietes. Pure ecological hemp fibers which fills all the empty spaces in the structural elements.

from 3,58 €/kg

Go to page
